Supplementary web page to the paper

Computational cost of Chirp Z-transform and Generalized Goertzel Algorithm

The above-titled paper was presented at EUSIPCO 2014 conference. The paper is available here. This webpage serves as supplementary to this paper, in sense of the reproducible research idea.


We take the two natural competitors in the area of fine-scale spectrum analysis, namely the Chirp Z-transform (CZT) and the Generalized Goertzel algorithm (GGA), and compare the two, focusing on the computational cost point of view. We present results that favor the GGA over the CZT in many practical situations, in terms of complexity for real-input data. This is shown both in theory and in practice.

Description of the measurements

The computational costs of the CZT and the GGA are compared also practically in the paper. The basic procedure and tested algorithms are described in the paper. We give some more details here.

The measuring batch has to be run from Matlab, which, however, serves just to run the appropriate commands and then collect and save measured data. In turn, MATLAB version does not play a role.

This archive contains all files necessary files for reproducing our plots or/and perform your own measurement. The archive is divided into folders:

measure/..............................Files for performing the tests. The main file is time_ggavsczt.m. The folder then contains DLL libraries of FFTW and LTFAT, as well as the executables, compiled for 64bit Windows. Such users can therefore perform their own measurement just by running the main file from Matlab.
src/.....................................Source codes for all the algorithms in Matlab and of the timing executables in C. The C implemetation of the algorithms is part of LTFAT from ver. 1.4.3 upwards. If you wish to run your experiment on system other than Win 64bit (including Unix-type systems), please see the README file for compilation instructions.
measured/..........................Measurement results of a few computers (see their specification below). Matlab MAT files.
graphic_comparison/.............Matlab script taking the saved results and plotting various graphs comparing the speed of the algorithms. Set the booleans at the first few lines to choose what plots to show.

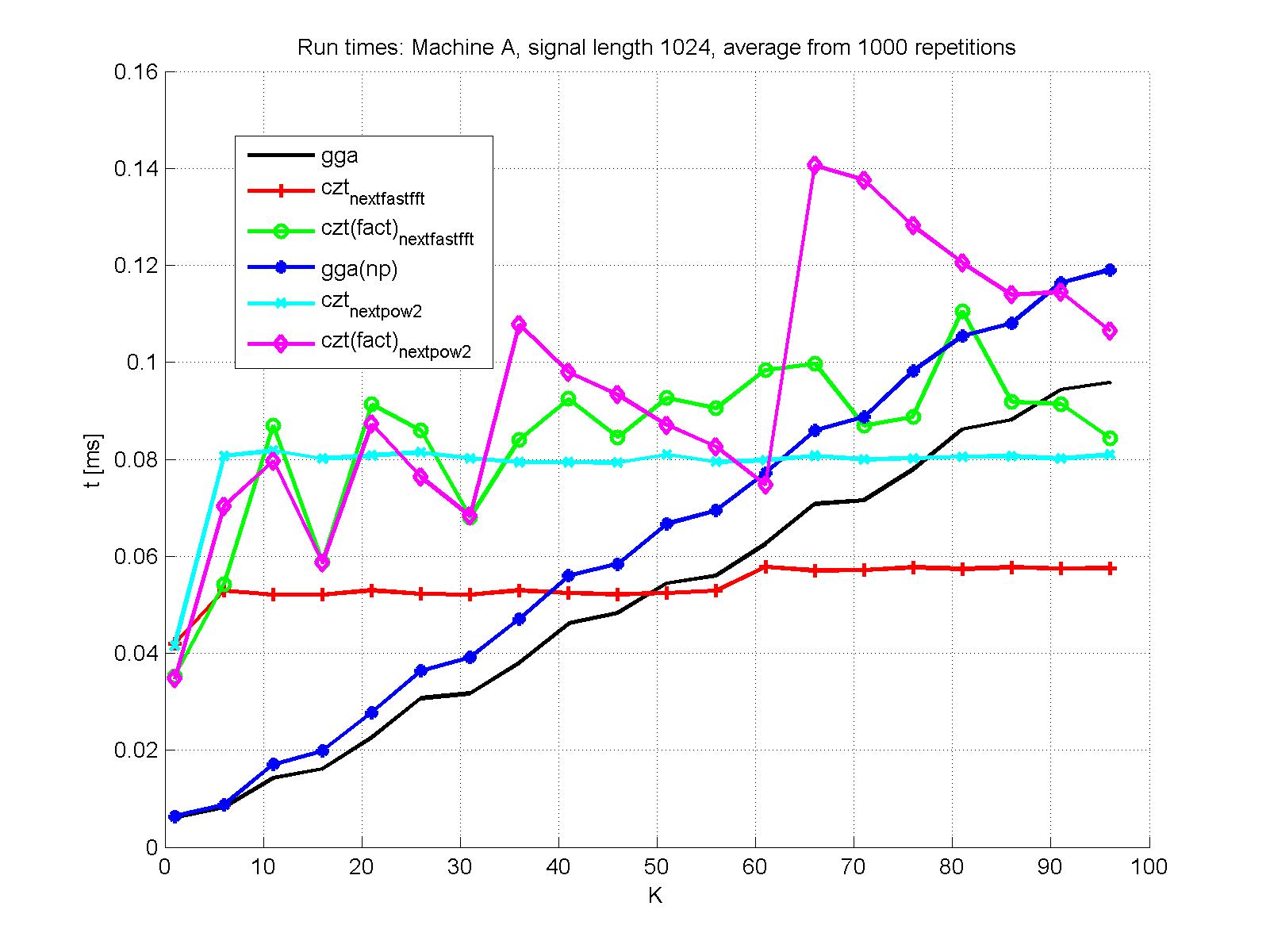

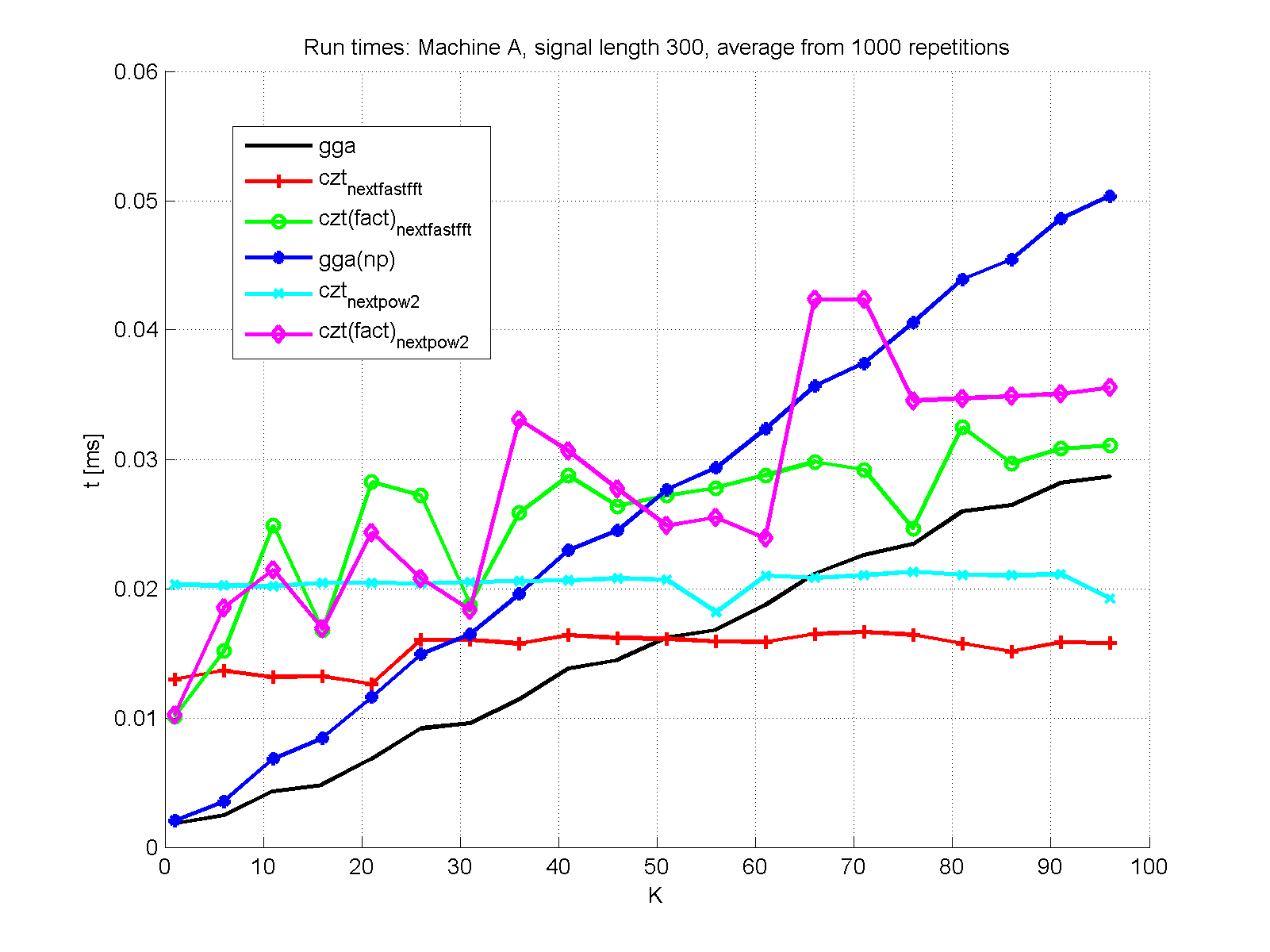

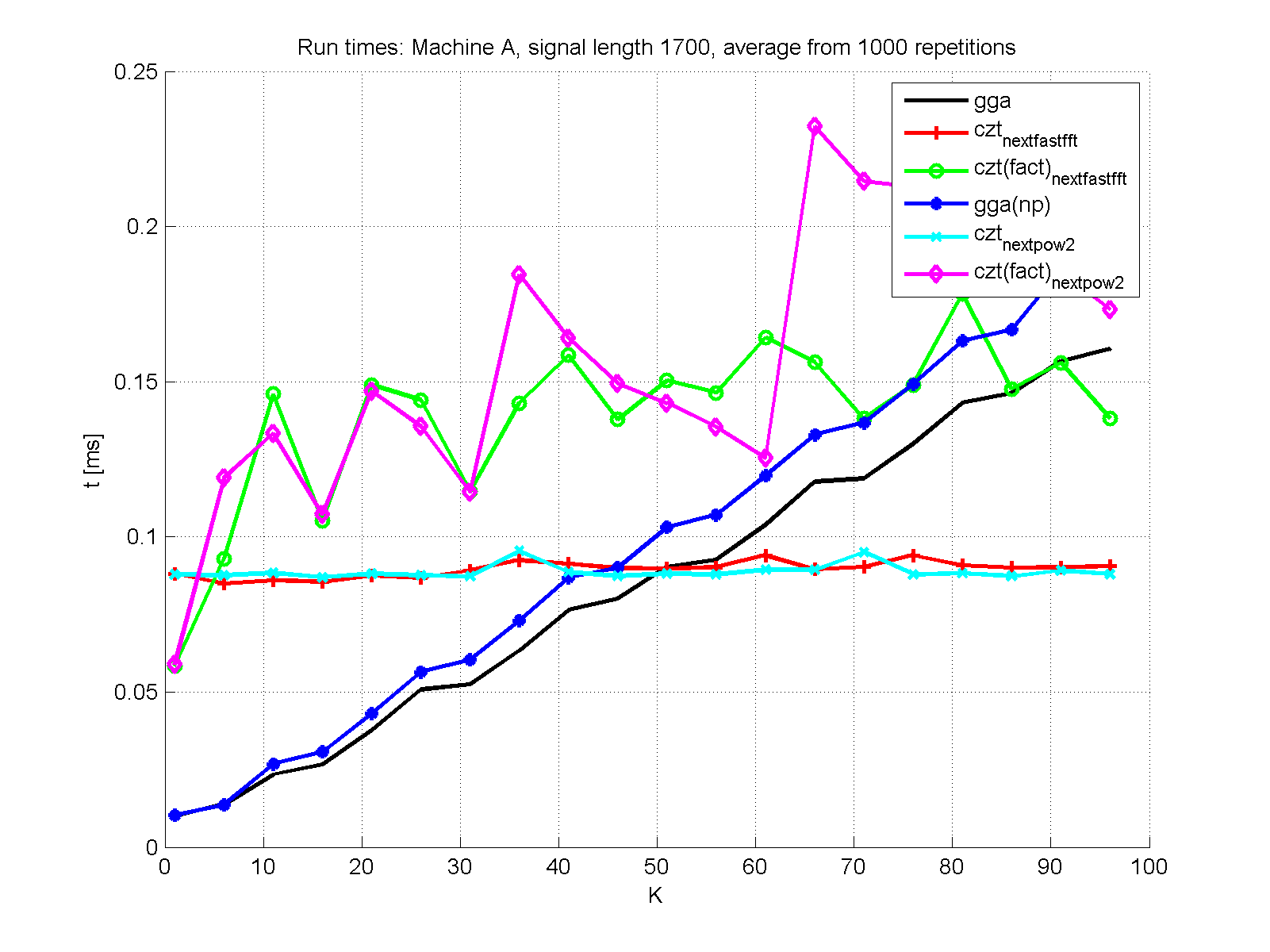

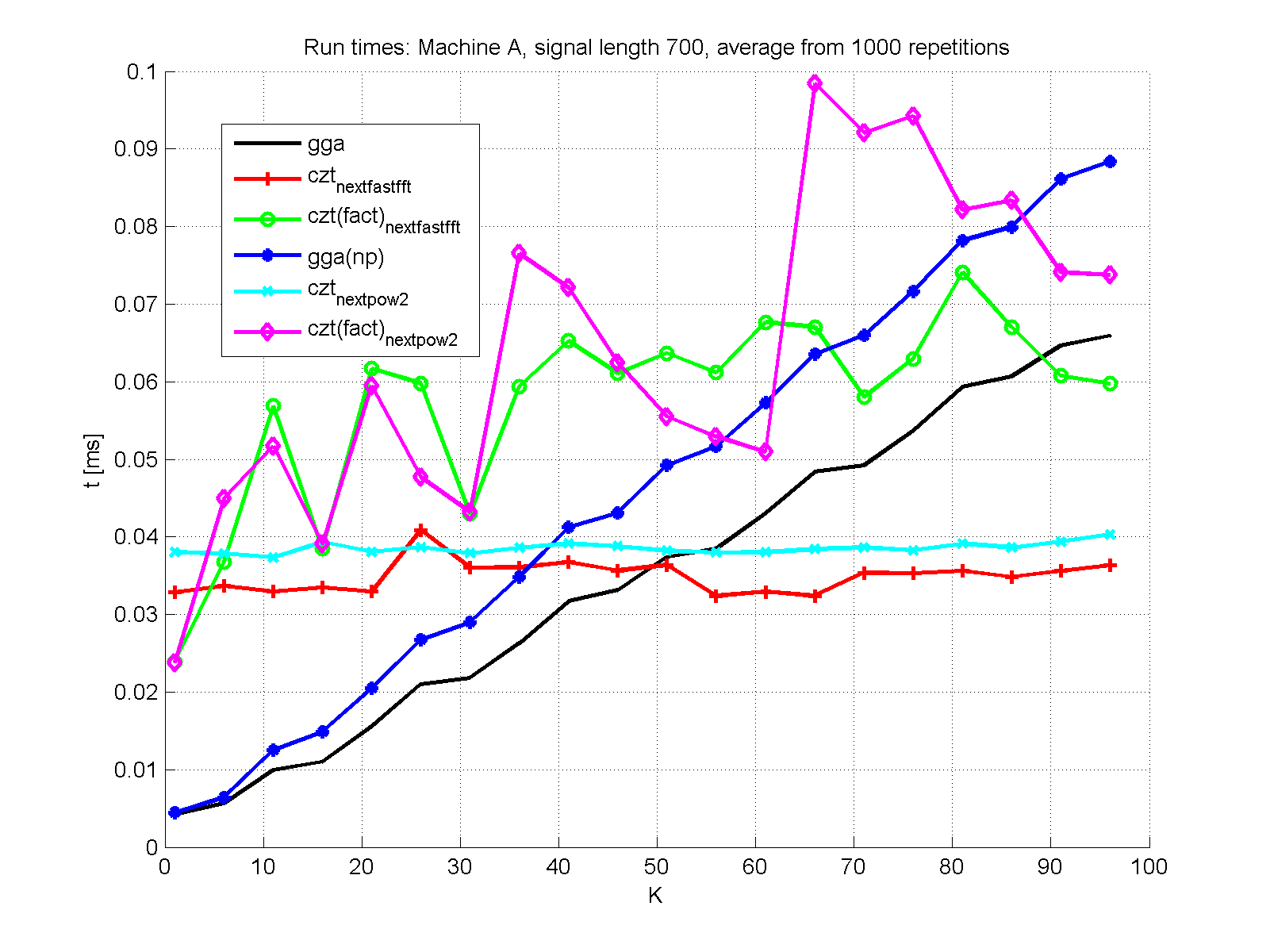

First, we present timing plots for Machine A for several signal lengths:

L300Prusa L700Prusa L1024Prusa L1700Prusa

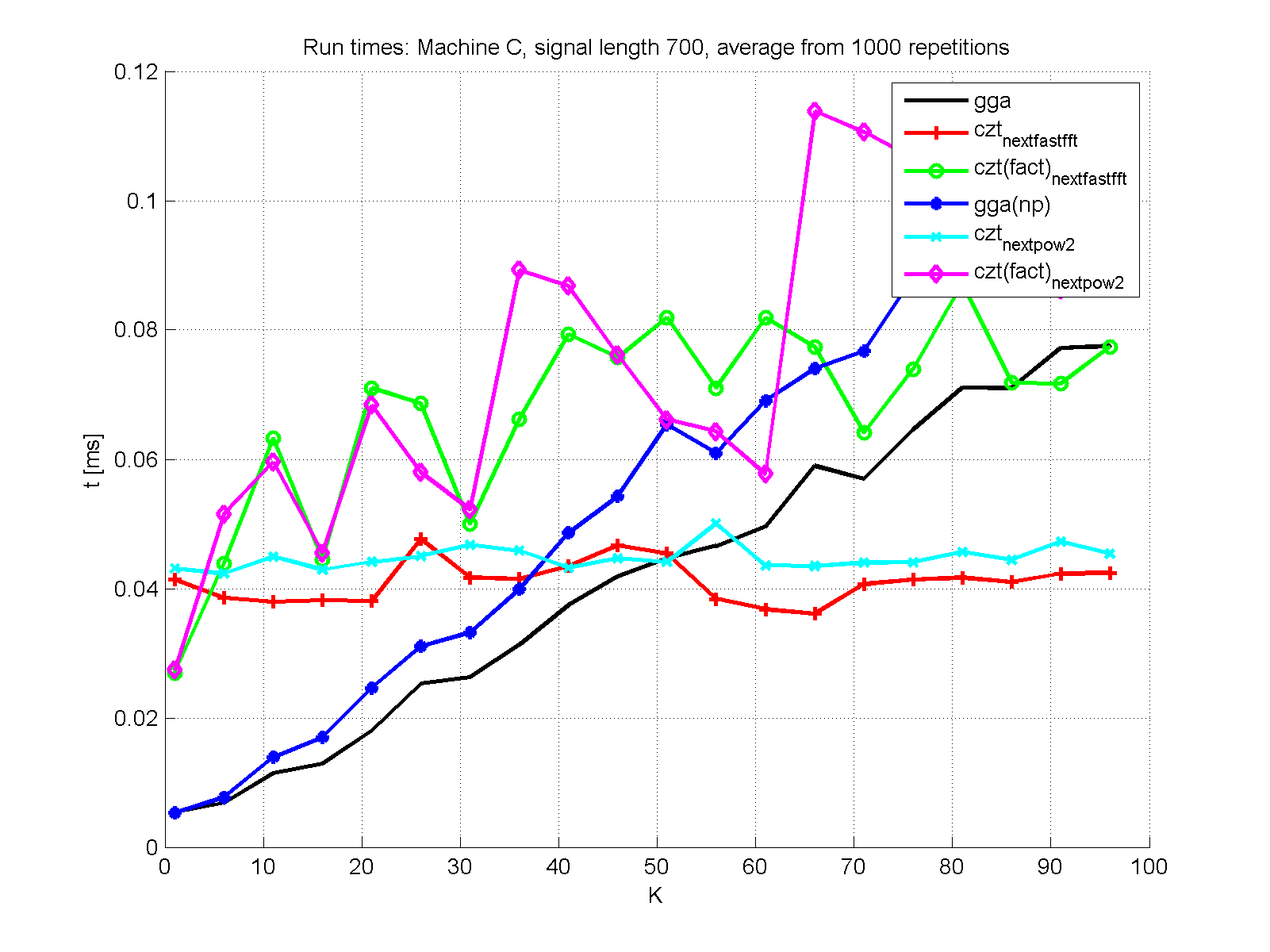

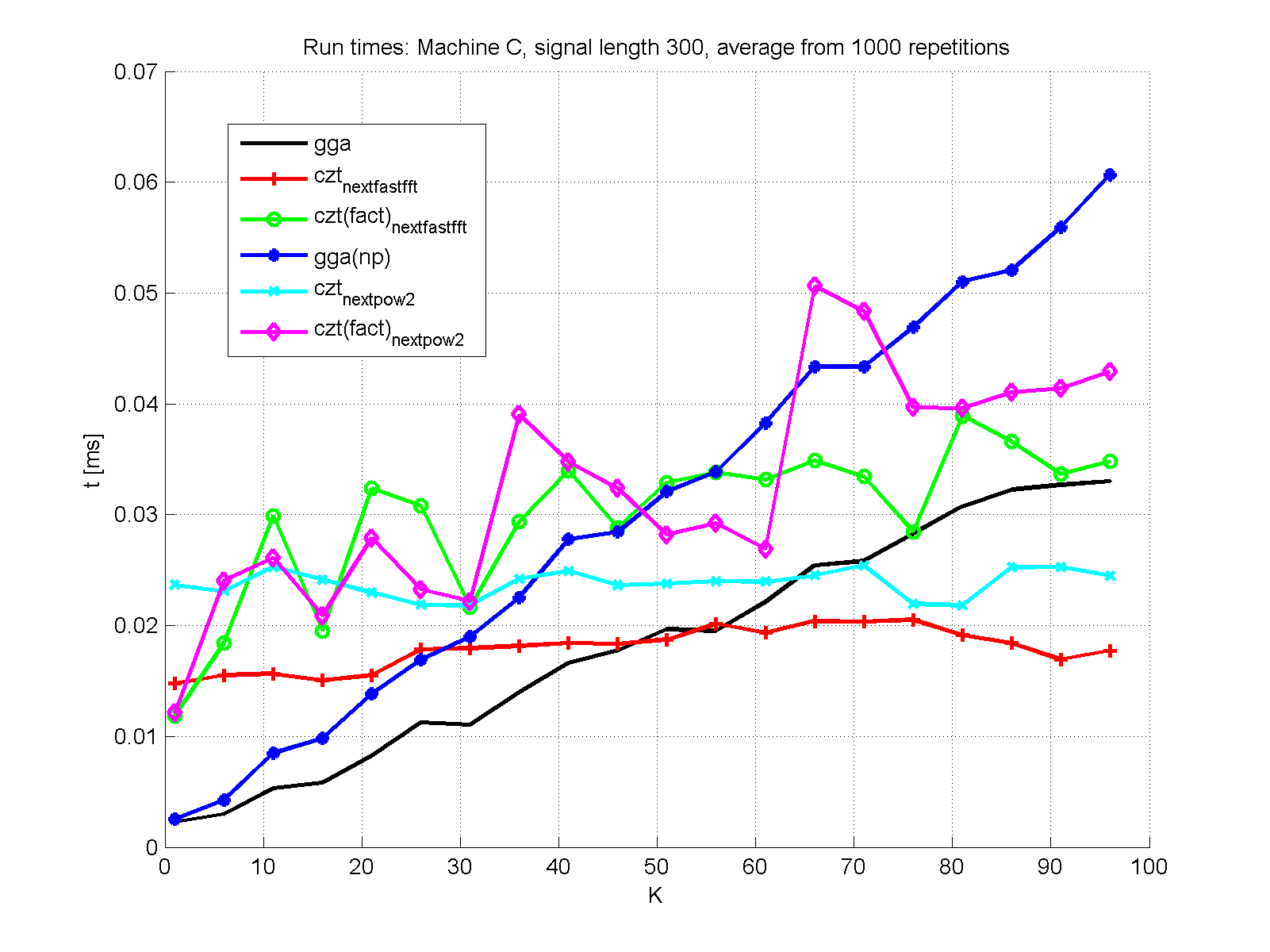

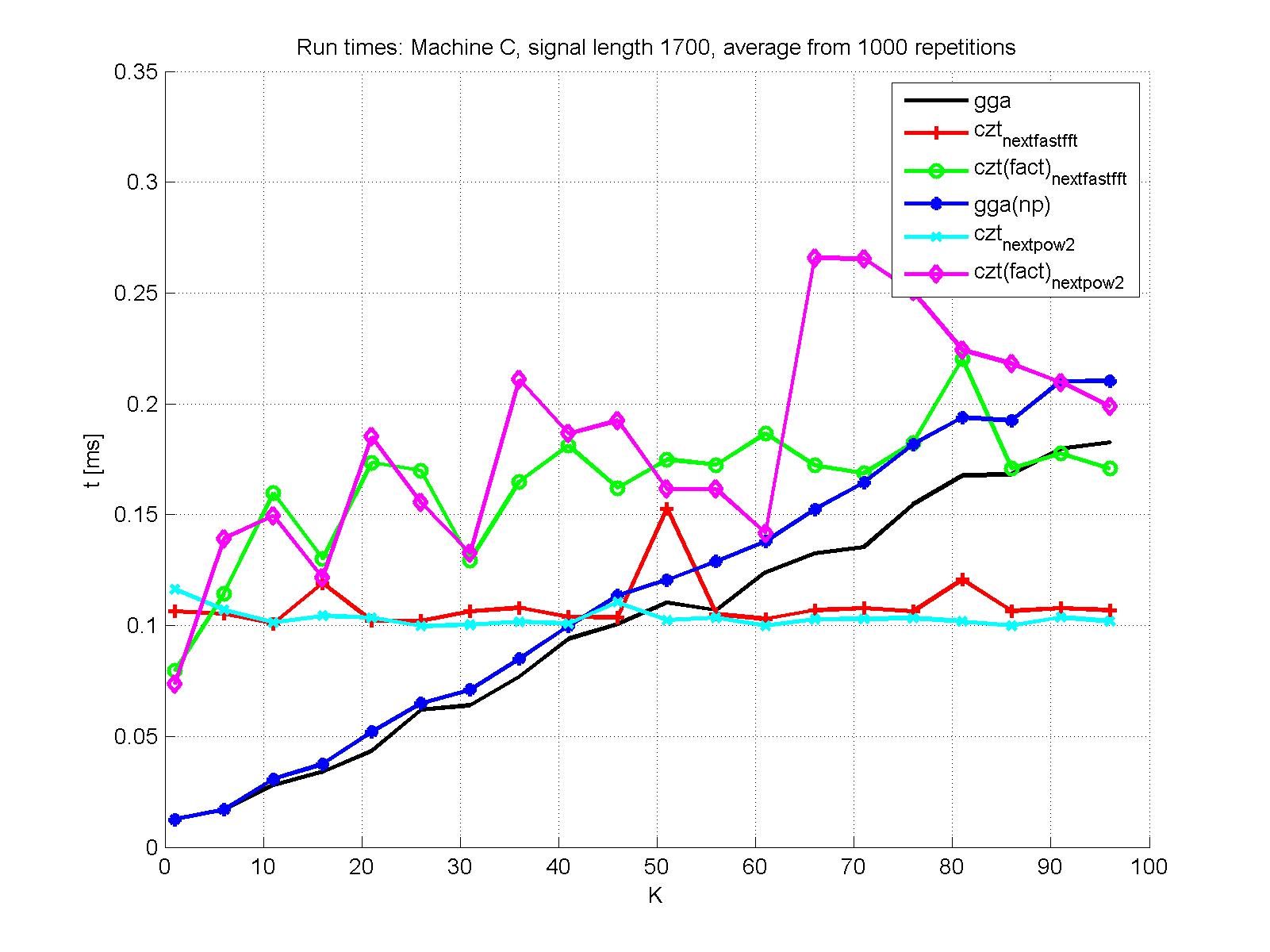

Now the same timings, measured at Machine C:

L300MachNTB L700MachNTB L1024MachNTB L1700MachNTB

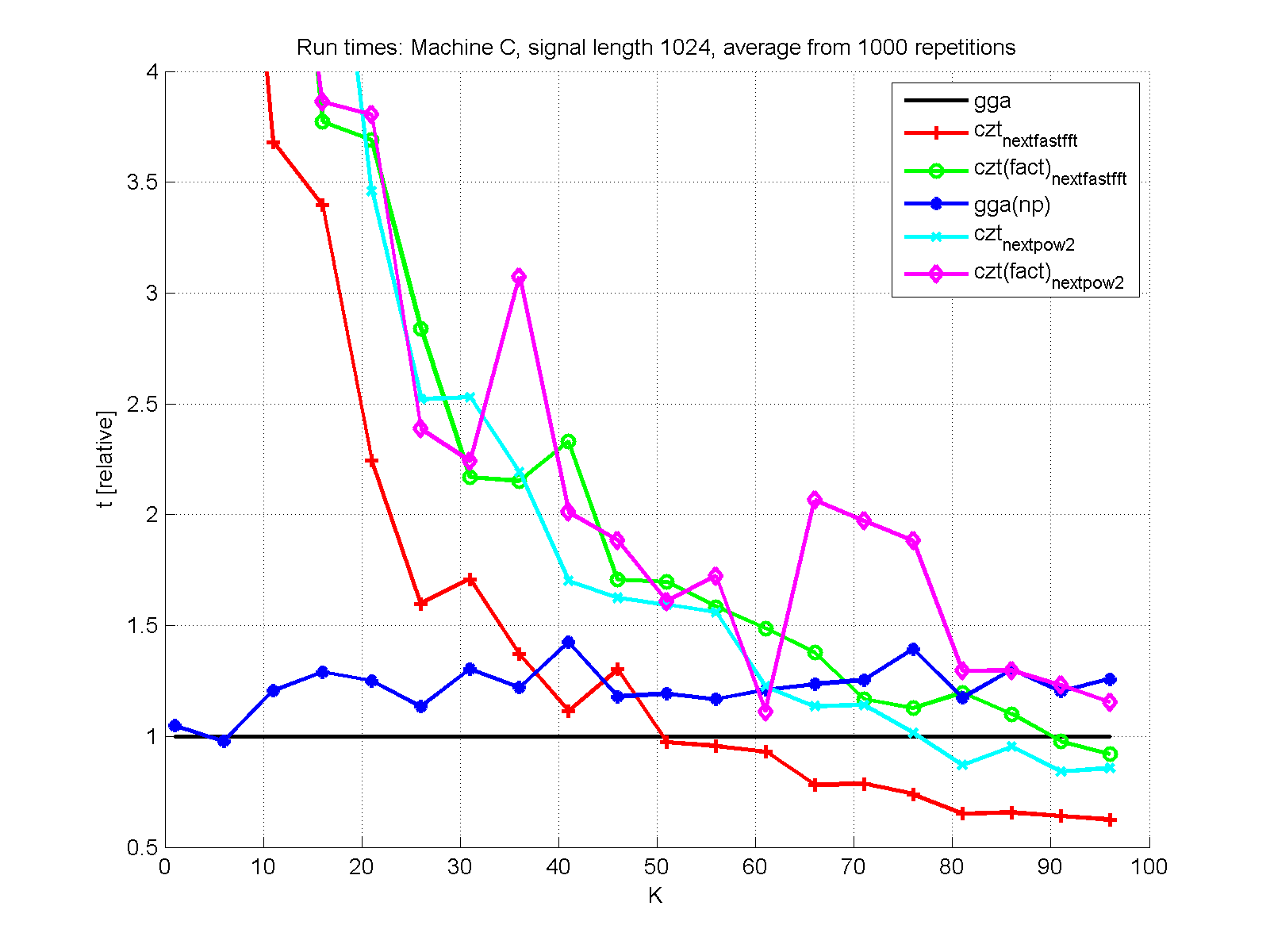

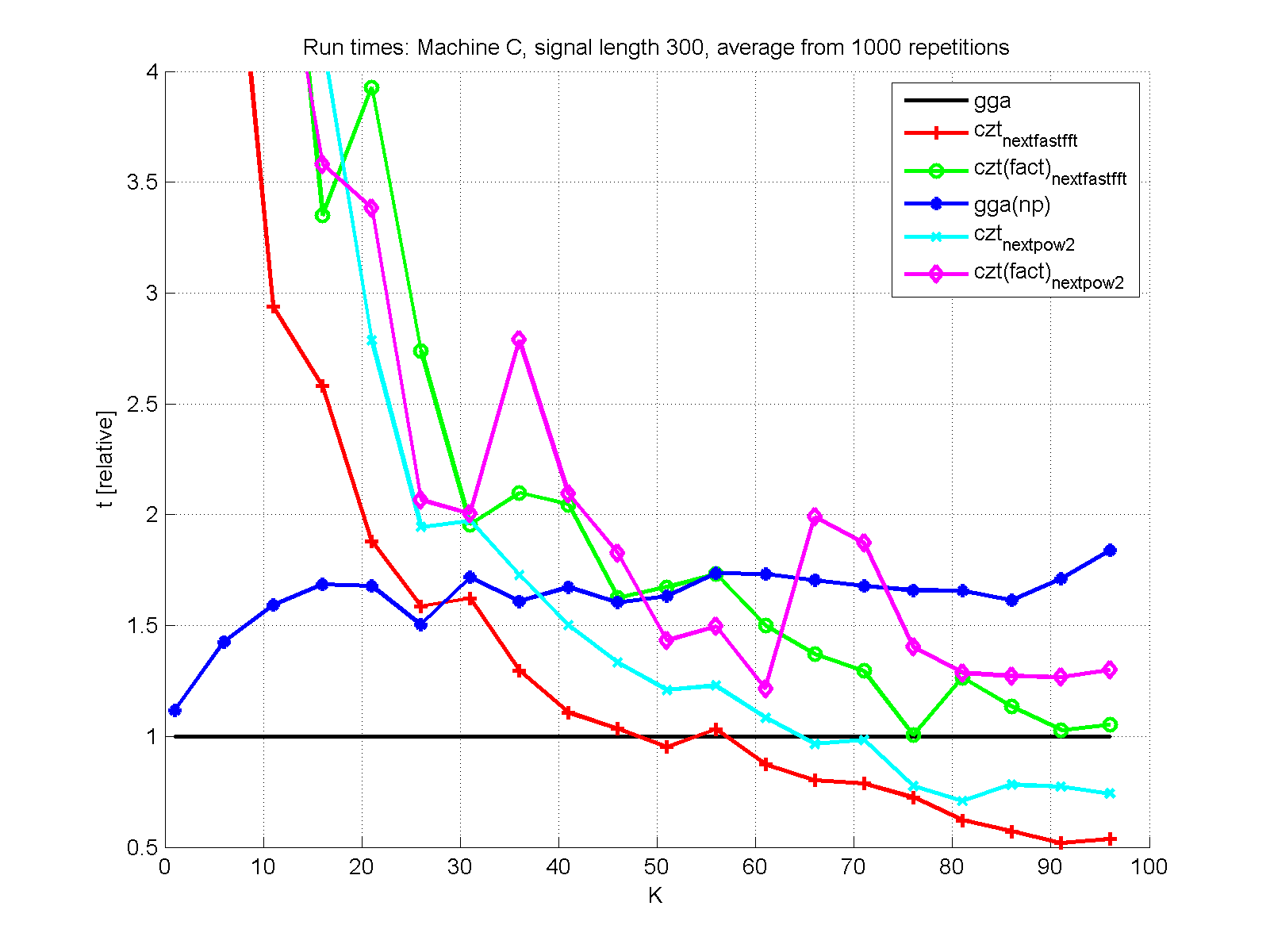

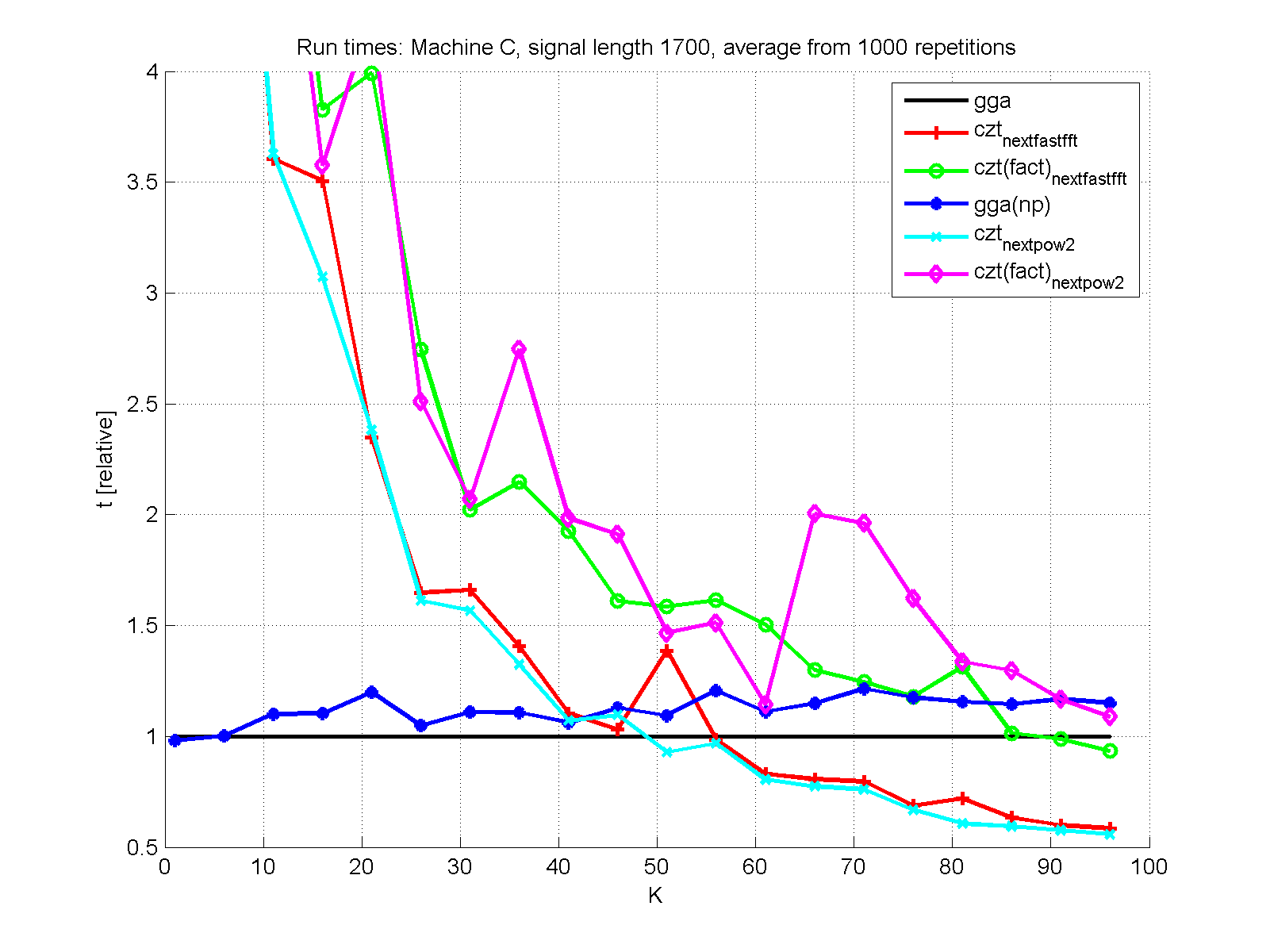

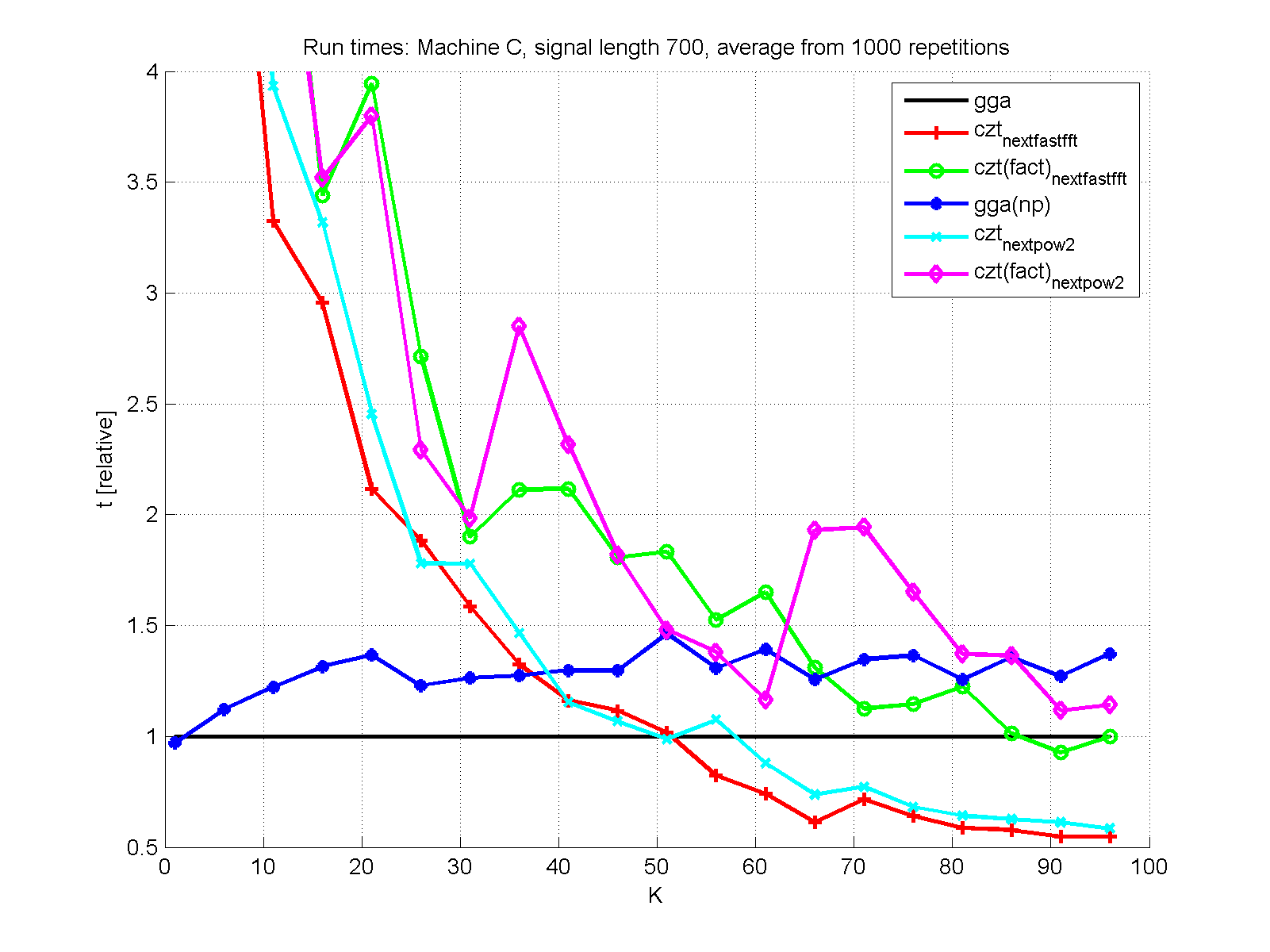

Next set is timing measured at Machine C, but this time relative to the GGA:

L300MachNTBrel L700MachNTBrel L1024MachNTBrel L1700MachNTBrel

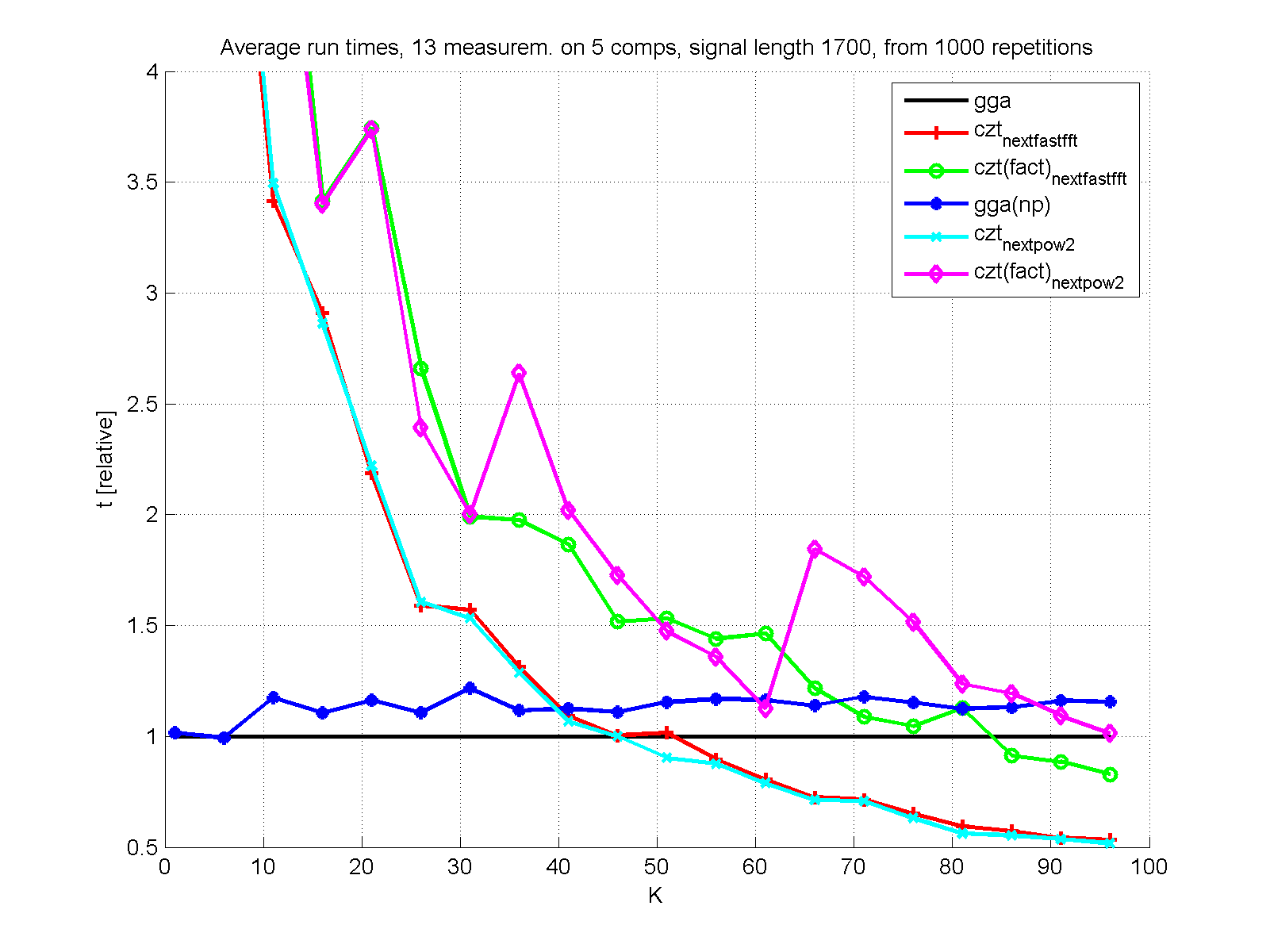

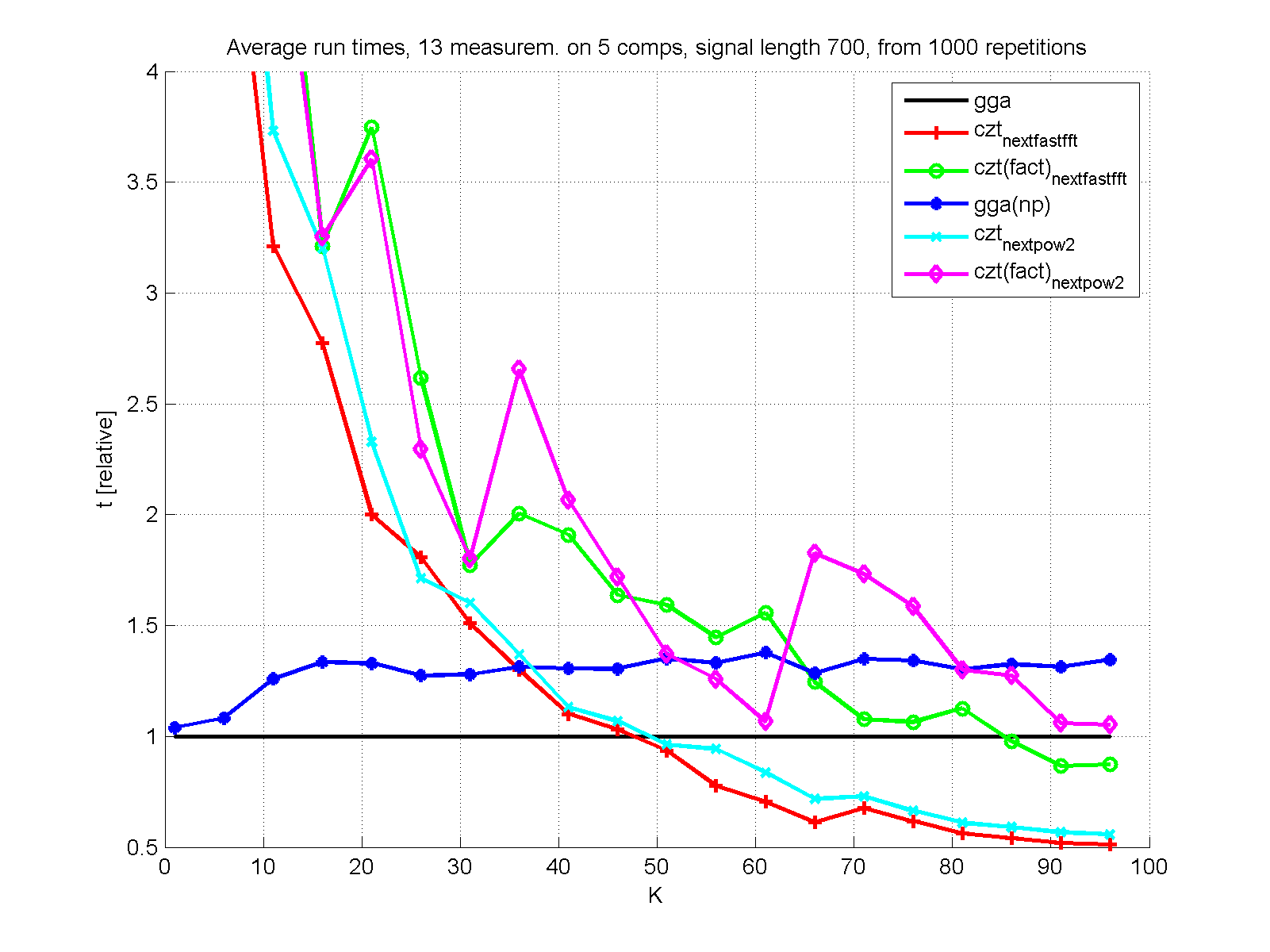

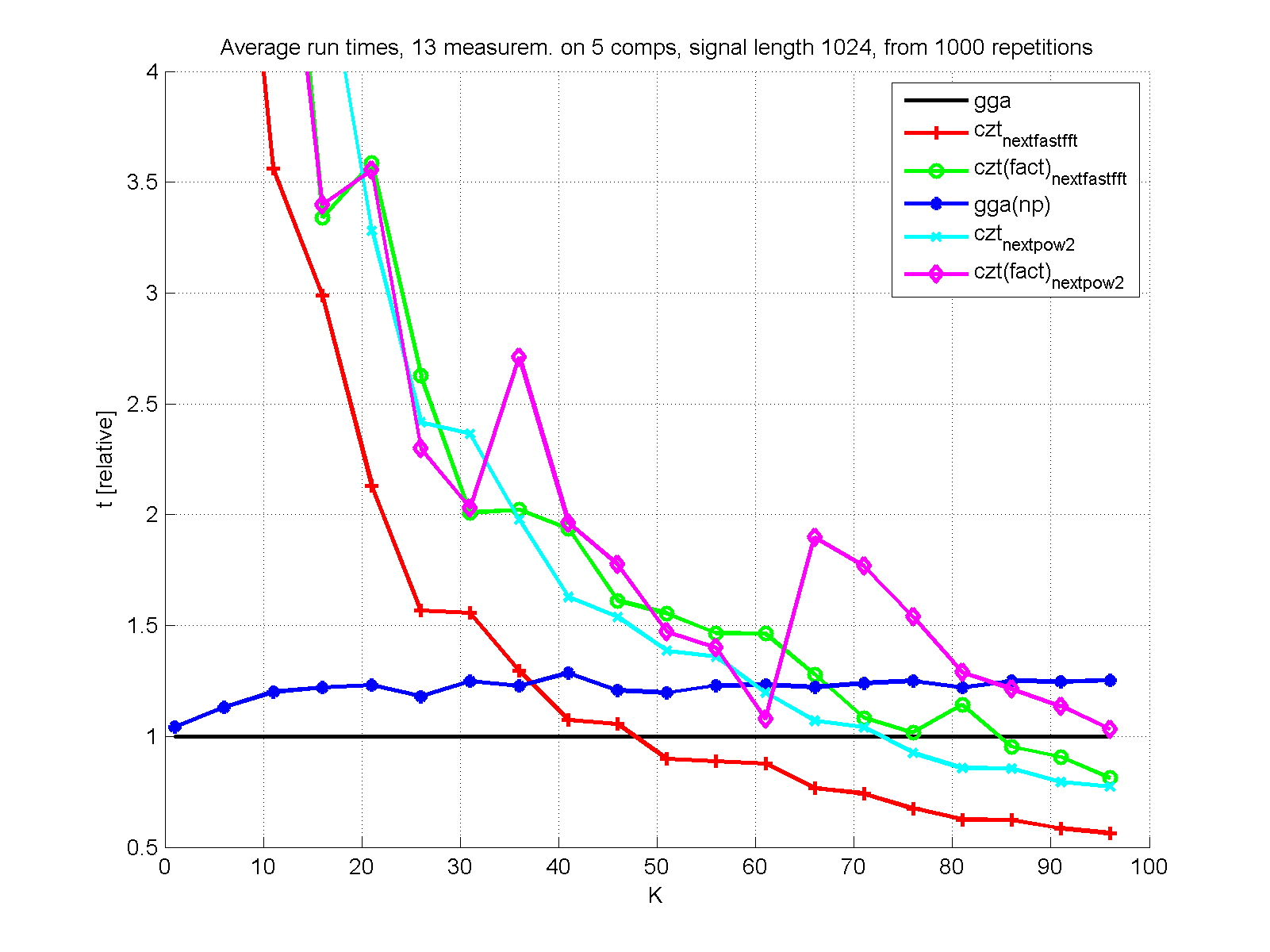

And finally, we present relative timings averaged over Machines A to F:

L300rel L700rel L1024rel L1700rel

Measured computers

Specifications of the measured computers follow. The reproducibility of our results is not possible here, of course; however we provide the measured data on these machines.

Machine A:
Desktop PC of ZP
file cztvsgga_25-Oct-2013_18-12-16-Prusa.mat
Intel(R) Core(TM)2 Quad CPU @ 2.40GHz
3GB memory
Windows 7 64bit

Machine B:
Desktop of VM
file cztvsgga_27-Oct-2013_07-55-17-Mach_PC_skolni.mat
Intel(R) Core(TM) i7 CPU 960 @ 3.20GHz
Windows 7 64bit

Machine C:
Notebook of VM
file cztvsgga_27-Oct-2013_07-51-33-Mach_notebook.mat
Intel(R) Core(TM)2 Duo CPU T5870 @ 2.00GHz
Windows 7 64bit

Machine D:
PC in laboratory SC5.113
files cztvsgga_29-Oct-2013_08-??-??-SC5.113.mat
Intel(R) Core(TM) i5 CPU 680 @ 3.60GHz
12GB memory
Windows 7 64bit

Machine E:
PC in laboratory SC5.127
files cztvsgga_01-Nov-2013_14-??-??-SC5.127.mat
Intel(R) Core(TM) i5 CPU 680 @ 3.60GHz
Windows 7 64bit
